Methods

The task of vision for a service robot is to deliver an interpretation of the scene that contains both geometric and semantic information. In other words, the Robutler has to know where objects are placed and what can be done with them. Clearly, the semantics of an object is not generally conceivable from vision alone. This kind of knowledge can presently be only attached to object models in a database. It is thus natural for a service robot to work with an a priori known set of objects.

We use a three-camera system (Digiclops, Point Grey Research Inc.) to perform stereo processing with a horizontal and a vertical stereo pair (baseline 10 cm). Each image has a resolution of 640x480 pixels. The objects we are dealing with, bottles and glasses are challenging for the visual system. The reason is that visual data of transparent objects are generally more ambiguous than of opaque, colored or textured objects. As a result, mainly surface creases and depth discontinuities contribute to stereo processing. The output thus is a sparse representation of the scene by rather few 3D-data points, outlining the objects on the table.

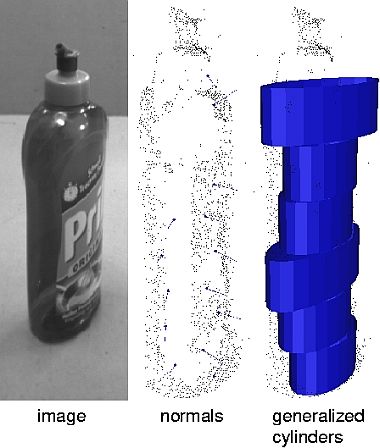

The object models used for scene analysis are derived, in a learning phase, from empirically sampled histograms of the stereo data that are produced by the objects of interest. During scene analysis, search and optimization of the match of all object models to the stereo data across all possible pose parameters is efficiently implemented by a fuzzy variant of the generalized Hough transform. We have found that our method can cope with challenging objects such as glasses under partial occlusion and over large variations of lighting (daylight, fluorescent light, and spotlight). This kind of robustness is required for unconstrained real-world scenarios of service robotics.

These three images show the Robutler during analysis of a tabletop scene, just before starting to act. The scene features a bottle and two wine glasses. The 3D-point data obtained from stereo processing and the result of scene analysis are respectively overlaid on the second and third image. Note the large amount of noise and background data that arise as artifacts from stereo processing under such difficult conditions (transparent objects). In the result graph, the three peaks represent the distribution of evidence across the table for the different objects. The bottle and the two glasses are correctly located and identified.

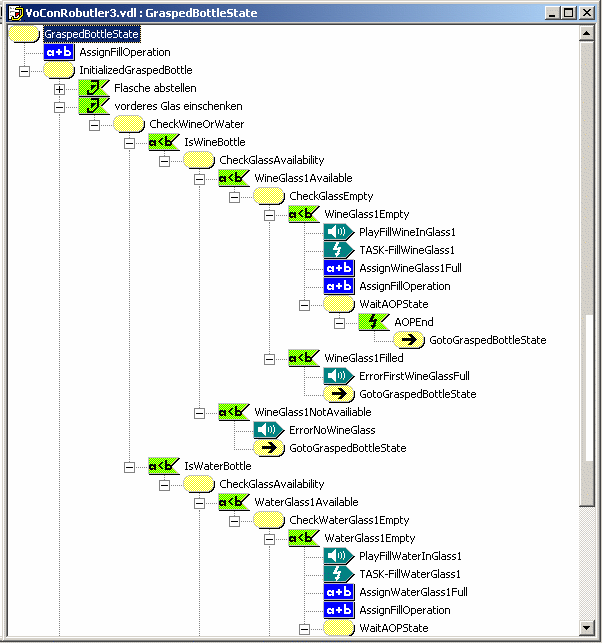

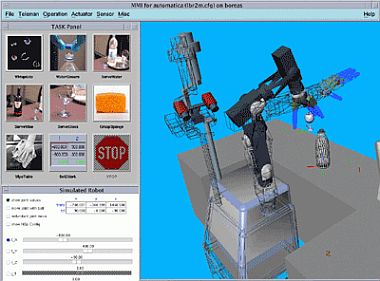

For the flexible programming of manipulation tasks the same system is used for Robutler as for our Telerobotic and Space Application Experiments. The manipulation tasks are combined from so called Elemental Operations in a Graphical User Interface. These Elemental Operations combine sensor information, control strategies and basic Cartesian or joint angle movements provided by the system setup. The reaching and grasping of a bottle for example might consist of these basic operations:

• Move the Hand Cartesian in a grasp position relatively to the object (object pose known from scene analysis or by distance sensor, dependent on system setup)
• Drive the fingers in a predefined grasp shape (joint angles) suitable for the object
• Grasp the bottle with fingers impedance controlled and the stiffness adjusted to robust grasp the bottle
