6DoF-Motion-Platform

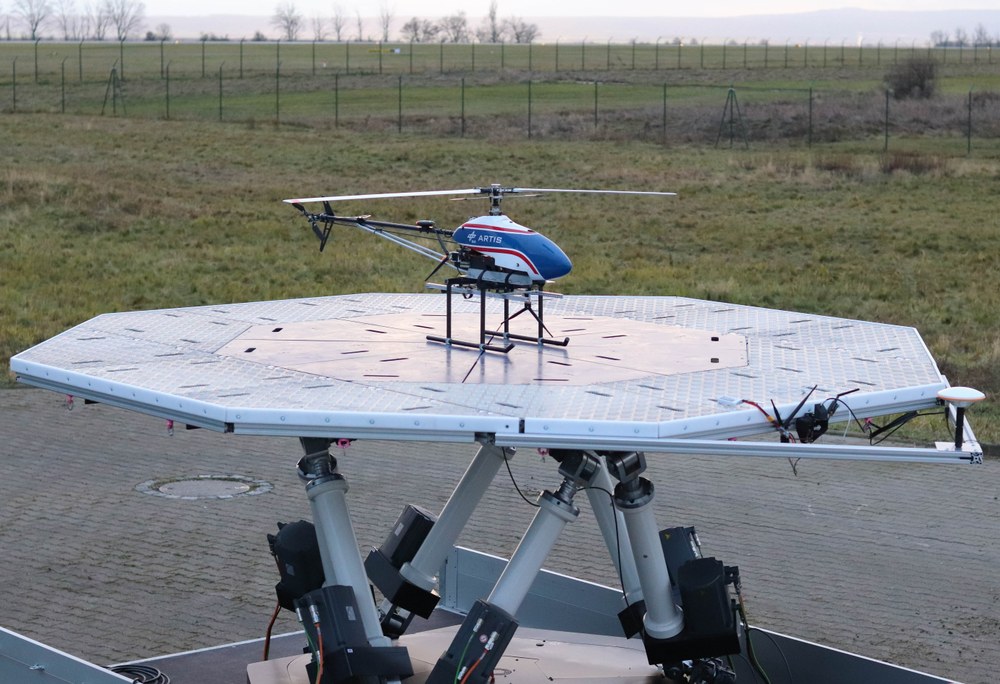

The 6DoF-Motion-Platform makes it possible to simulate realistic maritime conditions, for example by simulating ship deck movements for flight tests. The simulator is a platform that can move in six degrees of freedom and can be controlled by a computer. The platform is mounted on a trailer, which can be used to simulate the horizontal movement of a ship, for example. Other project-specific applications are also possible.

The system is currently being used in the DLR project MaRPAS, for example.

Data:

  • Six degrees of freedom
  • Landing platform with different surfaces: Checker plate, smooth, steel (magnetic) and mesh
  • Mobile and stationary use
  • Motion platform drive: electric
  • System weight: 1400 kg
  • Diameter of landing deck: 3.6 m
  • Usable for aircraft up to 100 kg
  • Landing deck can be folded for transportation
