Mobile system for acoustical measurement techniques (SAG)
![](/de/as/ueber-uns/abteilungen/experimentelle-verfahren/mikrofon-array/mikrofon-array.jpg/@@images/image-400-5084f70dea697bd06c31a48046ebe51d.jpeg)
![](/de/as/ueber-uns/abteilungen/experimentelle-verfahren/mikrofon-array/highspeedpivsystem.jpg/@@images/image-400-6c607479faf462f9a1598d45ebd5a39f.jpeg)
The aeroacoustic laboratory Goettingen (SAG) comprises the advanced aeroacoustic measurement techniques at the Institute of Aerodynamics and Flow Technology in Goettingen including several acoustic microphone arrays, a variety of acoustic sensors, two large data-acquisition systems and a high-speed PIV system. The individual components can be integrated to mobile measurement systems to perform different measurement tasks in the field of aeroacoustic research.

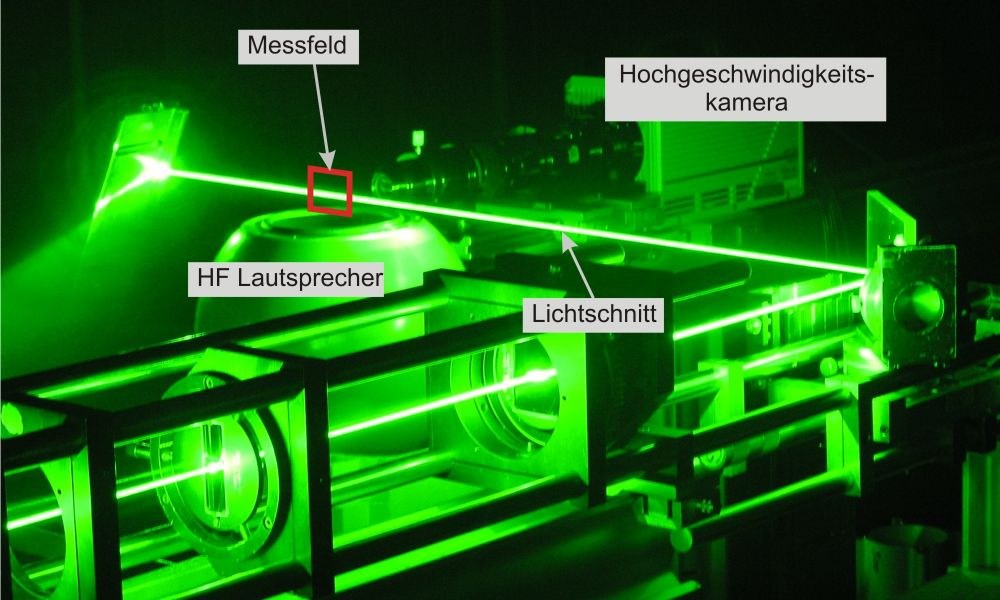

Figure 1 shows the DLR microphone array in the low-speed test facility of Airbus Bremen (B-LSWT). By means of this microphone array sound sources can be localized and quantified on aircraft half models in the closed test section of this industrial wind tunnel (see also: Measuring principle of the Microphone array). The application of the high-speed PIV system to measure the sound velocity non-intrusively is shown in Figure 2
General data
- Site at DLR Göttingen
- Opening in 2008
- Operation vear-around
Technical Data
- anechoic room 7,4 m x 6,75 m x 4,3 m (following DIN EN ISO 3745:2012-07, Appendix A) with optional flow test stand (nozzle dimensions 0,4 m x 0,4 m, up to 50 m/s)
- 9 time-synchronized data acquisition systems of
type VIPER with a total of 496 channels at a sampling rate of up to 250 kHz - 2 data acquisition systems of type Oros
with a total of 56 channels - 60 ¼-inch condenser microphones
- 20 ½-inch condenser microphones
- 80 ¼-inch multifield condenser microphone
- 100 ¼-inch cryogenic condenser microphones
- 250 pre-polarized electret microphones
- 40 uniaxial accelerometers
- 30 triaxial accelerometers
- 60 piezo-resistive pressure transducers
- 18 sound intensity probes (p-p and p-u)
- 1 three-dimensional intensity probe
- Microphone arrays for various applications
- Measurements in closed test sections (up to 288 microphones)
- Measurements in open test sections (up to 250 microphones)
- Measurements in cryogenic environments (144 microphones)
- Measurements in pressurized cryogenic environments (96 microphones)
- Cabin microphone array (60 microphones, flight-test approved)
- Near-field holography
- Miscellaneous: filters, artificial head, signal generators, exterior microphones, noise sources, pistonphone, 1-point laser vibrometer
Applications
- Lokalisierung und Quantifizierung von Schallquellen
- Localization and quantification of noise sources
- Identification of source mechanisms
- Mobile operation in flight testing
- Investigation of boundary layer excitation
- Measurement and reduction of noise in the aircraft cabin
- Mobile operation in industrial wind tunnels
- Open measurement sections
- Closed measurement sections
- Wind tunnels with cryogenic and pressurized measurement section
Project highlights
- SIMKAB (Simplifizierte Kabine, LuFo IV-2)
Objective: technical survey of source locations, main transmission routes, and noise emission in the cabin in a flight test with the DLR’s Airbus model A320 research aircraft ATRA - ALSA (Akustische Lokalisation von Strömungsablösung im ETW, LuFo IV-3)
- Objective: Survey of aeroacoustic noise sources on downscaled models at flight reynolds numbers and investigation of relation between near-field and acoustic far-field.
- PROTEG (Production Optimising Technologies, Lufo IV-3)
Objective: experimental survea of the boundary layer exciation of a light-weight plate at M =0.8 - NEMO (Noise Source Evaluation using In-flight Data and Modal Characterization of CRAFD Demonstrator, LuFo IV-4)
Objective: detailed analysis of SIMKAB flight test data retrieved from the A320-ATRA and derivation of an empirical model for the boundary layer exciation. - FlightLab (optical vibration measurement techniques and efficient analysis tools, Lufo V-1)
Objective: Development of a physical modell for prediction of noise emission of a light-weight plate under boundary layer excitation. - InScan (accurate and time-optimized in-flight intensitätsscanning, Lufo V-2)
Objective: Development of an array-based measurement concept for swift and precise determination of cabin noise - MAAM-course (Mikrophone Arrays for Aeroacoustic Measurements, 2014, 2016)
- Research support (Daimler, VW, Porsche, Audi, Hübner, DNW-LLF, KRRI - Korean Railroad Research Institute
Cooperations
- German-Dutch Windtunnels (DNW)
- European Transonic Windtunnel (ETW)
- TU Cottbus, TU Berlin, NASA, Trinity College Dublin,
- Airbus, RUAG
Literature
- Ahlefeldt, T.: Microphone Array Measurements in European Transonic Wind Tunnel at Flight Reynolds Numbers, AIAA-Journal (in press, accepted for publication 06 July 2016)
- Haxter, Stefan (2016) Extended Version: Improving the Damas2 Results for Wavenumber-Space Beamforming. 6th Berlin Beamforming Conference - BeBeC2016, 29. Feb. - 01. Mar. 2016, Berlin, Germany
- Berkefeld, Tobias und Spehr, Carsten und Ehrenfried, Klaus und Haxter, Stefan und Kröber, Stefan (2015) Experimental Investigation of Flow-Induced Panel Vibrations at Cruise Mach Number. AIAA Aviation - 21st AIAA/CEAS Aeroacoustics Conference, 22. - 26. June 2015, Dallas, TX, USA. DOI: 10.2514/6.2015-3263
- Daniel Ernst, Carsten Spehr, and Tobias Berkefeld. "Decorrelation of Acoustic Wave Propagation through the Shear Layer in Open Jet Wind Tunnel", 21st AIAA/CEAS Aeroacoustics Conference, AIAA Aviation, (AIAA 2015-2976)
- Spehr, Carsten und Haxter, Stefan (2015) Improving the performance of aeroacoustic measurements beneath a turbulent boundary layer in a wake flow. Journal of Sound and Vibration, 357 (11), Seiten 107-127. ELSEVIER. DOI: 10.1016/j.jsv.2015.07.005
- Haxter, Stefan und Ehrenfried, Klaus und Kröber, Stefan (2014) Examination of the Influence of Flow Speed on the Coherence Lengths in Turbulent Boundary Layers at High Subsonic Mach Numbers. In: New Results in Numerical and Experimental Fluid Mechanics IX Notes on Numerical Fluid Mechanics and Multidisciplinary Design, 124. Springer Verlag, Cham Heidelberg New York Dordrecht London. Seiten 619-627. ISBN 978-3-319-03157-6. ISSN 1612-2909
- Henning, Arne und Kröber, Stefan und Koop, Lars (2013) Acoustic particle velocity measurements: a cross comparison between modern sensor technologies. Measurement Science and Technology, Vol. 24 (8), Seiten 1-12. IOP Publishing. DOI: 10.1088/0957-0233/24/8/085303. ISSN 0957-0233
- Henning, Arne und Koop, Lars und Schröder, Andreas (2013) Causality correlation analysis on a cold jet by means of simultaneous particle image velocimetry and microphone measurements. Journal of Sound and Vibration, Vol. 332, Seiten 3148-3162. ELSEVIER. DOI: 10.1016/j.jsv2013.01.027. ISSN 0022-460X
- Kröber, Stefan and Hellmold, Marius and Koop, Lars, „Experimental Investigation of Spectral Broadening of Sound Waves by Wind Tunnel Shear Layers”, 19th AIAA/CEAS Aeroacoustic Conference, AIAA-2013-2255
- Haxter, Stefan and Spehr, Carsten, „Examination of the Influence of Altitude and Speed on the Efimtsov Model Parameters”, 19th AIAA/CEASA Aeroacoustic Conference, 2012-5-27 – 2012-5-29, Berlin, Germany 2013
- Ahlefeldt, T., Sopranzetti F, Spehr C., Henning A, “Investigation of laminar detachment by means of simultaneous microphone and surface hot wire measurements”, 16th AIAA/CEAS Aeroacoustics Conference, AIAA-2013-2110
- Ahlefeldt, T.: Aeroacoustic Measurements of a Scaled Half-Model at High Reynolds Numbers, AIAA-Journal, Vol, 51, No. 12, 2013
- Haxter, Stefan and Spehr, Carsten, „Two-Dimensional Evaluation of Turbulent Boundary Layer Pressure Fluctuations at Cruise Flight Conditions” 18th AIAA/CEASA Aeroacoustic Conference, 2012-06-04 – 2012-06-06, Colorado Springs, CO (USA), 2012
- Spehr, Carsten und Hennings, Holger und Buchholz, Heino und Bouhaj, Mohamed und Haxter, Stefan und Hebler, Anne, “ In-flight Sound Measurements: A First Overview”, 18th AIAA/CEAS Aeroacoustics Conference (33rd AIAA Aeroacoustics Conference), 04. - 06. Jun. 2012, Colorado Springs, CO, USA
- Ahlefeldt, T., Quest, J.: “High-Reynolds Number Aeroacoustic Testing Under Pressurised Cryogenic Conditions in PETW”, 50th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition, 2012
- Kokavecz, Judith und Spehr, Carsten und Seemann, Lasse, “Microphone Array Applications in Cabins”, Internoise 2012, New York City, USA. 2012
- Kröber, Stefan and Koop, Lars, „Comparison of Microphone Array Measurements of an Airfoil with High-Lift Devices in Open and Closed Wind Tunnels”, 17th AIAA/CEAS Aeroacoustic Conference, AIAA-2011-2721
- Ahlefeldt, T., Koop, L.: “Microphone Array Measurements in a Cryogenic Wind Tunnel”, AIAA-Journal Vol. 48 (2010), Nr. 7, S. 1470–1479
- Kröber, Stefan and Ehrenfried, Klaus and Koop, Lars and Lauterbach, Andreas and Henning, Arne, „Systematic Comparison of Microphone Array Measurements in Open and Closed Wind Tunnels”, 16th AIAA/CEAS Aeroacoustic Conference, AIAA-2010-3734
- Spehr, Carsten und Ewert, Roland und Kornow, Oliver und Delfs, Jan, “Broadband Simulation Of Flow-Induced Noise Generation On Orifice Plates In Air Conditioning Ducts”, 15th AIAA/CEAS Aeroacoustics Conference , 11.-13. May 2009, Miami, Florida, USA
- Spehr, Carsten und Henning, Arne und Siefert, Malte und Kornow, Oliver: ”PIV versus CFD as Basis for Hybrid CAA”, 13th CEAS-ASC 2009 Workshop & 4th Scientific Workshop X3-NOISE , 1. - 2. Okt. 2009, Bucharest, Romania
- Koop, L. und Ehrenfried, K, “Microphone-array processing for wind-tunnel measurements with strong background noise”, 14th AIAA/CEAS Aeroacoustics Conference, 2009
- Lauterbach, Andreas und Ehrenfried, Klaus und Koop, Lars, ”Array Measurements in Wind Tunnels with open Test Sections”, bebec2008 Berlin Beamforming Conference, 2008-02-19 - 2008-02-20, Berlin, 2008
- Ehrenfried, Klaus und Koop, Lars, “A comparison of iterative deconvolution algorithms for the mapping of acoustic sources”, AIAA Journal , 45 (7). Seiten 1584-1595, 2008
- Koop, L., Sijtsma, P., and Oerlemans, S., “Noise Source Localization in Closed Test Sections with Microphone Arrays”, 1st CEAS European Air and Space Conference, 2007
- Ehrenfried, Klaus und Koop, Lars, “A comparision of iterative deconvolution algorithms for the mapping of acoustic sources”, 12th AIAA/CEAS Aeroacoustics Conference, 2006-05-08 - 2006-05-10, Cambridge, MA (USA), 2006
- Ehrenfried, Klaus und Koop, Lars und Henning, Arne und Kaepernick, Kristian, “Effects of Wind-Tunnel Noise on Array Measurements in Closed Test Sections”, First Berlin Beamforming Conference 2006, 2006-11-21 - 2006-11-22, Berlin, 2006
- Koop, Lars und Ehrenfried, Klaus und Kröber, St., “Investigation of the systematic phase mismatch in microphone-array analysis“, 11th AIAA/CEAS Aeroacoustics Conference, 2005-05-23 - 2005-05-25, Monterey, CA (USA), 2005
