January 25, 2024 | Science missions LISA and EnVision clear another hurdle
Milestones in space exploration

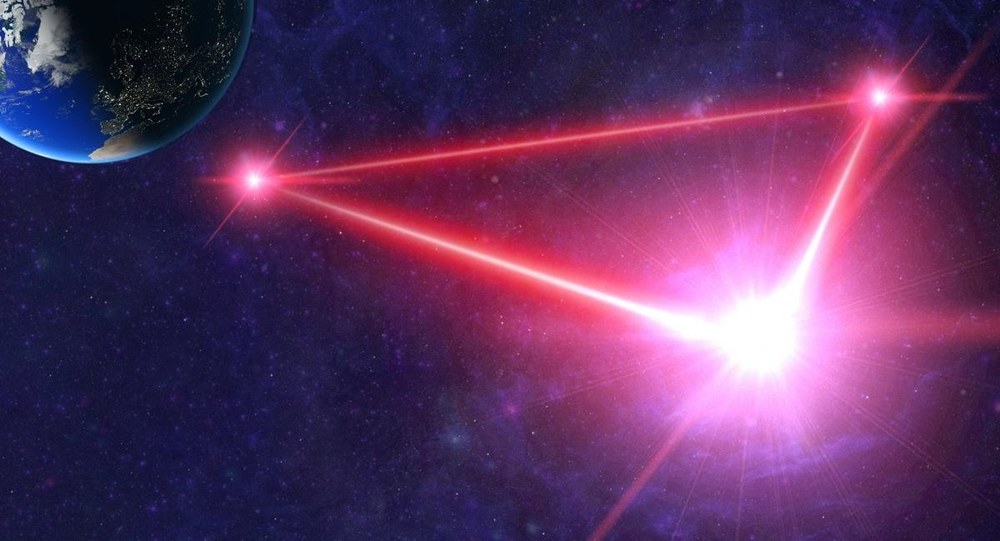

LISA – Detecting oscillations in spacetime
The LISA observatory will detect low-frequency gravitational waves from space and determine the nature of their sources with great accuracy once it goes into operation at the end of 2035. Gravitational waves — oscillations in space-time — are caused by the rapid acceleration of incredibly massive objects, such as the merging of two stellar-mass or supermassive black holes. The tiny amplitudes of a gravitational wave can only be detected by highly sensitive laser interferometry. In LISA, this laser interferometer is created by three identical probes that form an almost equilateral triangle with sides measuring around 2.5 million kilometres. This will make LISA by far the largest observatory ever built.
Image: 1/3, Credit:
NASA/JPL-Caltech / NASA / ESA / CXC / STScl / GSFCSVS / S.Barke (CC BY 4.0)
Hot planet concealed by dense clouds
Venus is Earth's inner neighbouring planet. It orbits the Sun at a distance of just over 100 million kilometres. The planet has a dense atmosphere of carbon dioxide, which generates more than 90 times the pressure on the surface than on Earth, which is roughly equivalent to the water pressure at a depth of 900 metres on Earth. At altitudes between around 30 and 60 kilometres, there are layers of haze and clouds of sulphuric acid that make it impossible to see the surface of the planet directly. Investigating the composition and dynamics of Venus' atmosphere is one of the focal points of ESA's EnVision mission (artist's impression).
Image: 2/3, Credit:
ESA/VR2Planets/Damia Bouic
Venus and Earth, dissimilar siblings
Venus is almost the same size and mass as the Earth, but the planet has developed in a completely different way. At the surface, Venus' atmospheric pressure is over 90 times that of the Earth at sea-level. Dense clouds of sulphuric acid prevent observation in the visible light range. However, the venusian atmosphere can be studied using radar – shown in the artist's impression of Venus on the right as a colour-coded radar map calculated from data from NASA's Magellan probe – and in some wavelengths of the infrared spectrum. This is the task of the European Space Agency's (ESA) Venus mission EnVision, which is scheduled for launch in 2031 and whose findings will help to identify the reasons for the differences in the development of the two planets.
Image: 3/3, Credit:
NASA/JAXA/ISAS/DARTS/VR2planets/Damia Bouic
On 25 January 2024, the Laser Interferometer Space Antenna (LISA) and EnVision missions were formally adopted into the European Space Agency's (ESA) Science Programme.
The German Space Agency at DLR is making a significant financial contribution to LISA and a substantial grant to EnVision.
The DLR Institute of Optical Sensor Systems is developing and constructing a multispectral camera for EnVision. The DLR Institute of Planetary Research is responsible for the scientific management of the spectrometer suite.
Focus: Spaceflight, space exploration
On 25 January 2024, the L-class Laser Interferometer Space Antenna (LISA) flagship mission and the M-class EnVision mission cleared another important hurdle in the European Space Agency's (ESA) Science Programme. ESA's Science Programme Committee has formally transferred the LISA observatory for detecting gravitational waves and the EnVision mission to explore Venus into their implementation phases by means of 'mission adoptions'. This means that the detailed design, construction and later the extensive testing of the spacecraft, payloads and ground infrastructure can begin in full. The German Space Agency at the German Aerospace Center (Deutsches Zentrum für Luft- und Raumfahrt; DLR) is the largest contributor to ESA's science programme and is therefore providing significant financial support to the LISA mission and parts of EnVision. This means that important parts of these two major European space projects are being realised in Germany. DLR in Berlin is significantly involved in one of the main instruments for EnVision. The DLR Institute of Planetary Research is responsible for the management and coordination of the entire VenSpec suite. The DLR Institute of Optical Sensor Systems is developing and constructing this multispectral camera, which will search for active volcanoes and map the surface mineralogy.
LISA – detecting waves in spacetime
LISA was selected as one of the three major flagship missions in ESA's Science Programme back in 2017. Since then, intensive work has been carried out on the technical concept and its implementation. The scientific preparations that have been underway since the 1990s, including the extremely complex data processing and analysis, have also been intensively continued by a global consortium of more than 1500 researchers. ESA, as well as the participating national institutions from various European countries and NASA in the USA and their industrial contractors, will now significantly increase the size of their teams in order to carry out the extensive development work that is still required before the planned launch of the mission in mid-2035.
Once it is operational in space from the end of 2035, LISA will detect low-frequency gravitational waves and determine the nature of their sources with great accuracy. Gravitational waves — oscillations in spacetime — are caused by the rapid acceleration of incredibly massive objects, such as the merging of two stellar-mass or supermassive black holes. The tiny amplitudes of a gravitational wave can only be detected by highly sensitive laser interferometry. In LISA, this laser interferometer is created by three spacecraft that form an almost equilateral triangle with sides that are approximately 2.5 million kilometres in length. This will make LISA by far the largest observatory ever constructed.
LISA – the largest observatory is being developed and built with a significant German contribution
LISA is being developed and built as part of ESA's Science Programme with the participation of NASA and with contributions to the payload from more than ten European countries, including Germany. ESA's industrial prime contractor for the overall mission will be selected in 2025 among a German and a German-Italian industrial consortium – Airbus in Friedrichshafen and OHB in Bremen and Oberpfaffenhofen together with Thales-Alenia in Italy. A scientific consortium is substantially involved in the development of LISA and is also setting up the mission's data processing and archiving. The German contribution to the mission is of decisive and mission-critical importance. This extensive contribution to LISA is largely attributable to the leading role of the Max Planck Institute for Gravitational Physics / Albert Einstein Institute (AEI) in Hanover in the development of the Interferometric Detection System (IDS), the components of which are provided by various partners in Europe.
The core of the IDS, developed by the AEI, is the central 'phase meter' of the mission alongside the optical system, which is to be supplied by a partner from the UK. There is close cooperation with the Technical University of Denmark (DTU) in Copenhagen. In addition, the institute in Hanover will supply a vital mechanism for the payload in collaboration with Dutch partners. The AEI is also supporting the mission and ESA with many system design issues, drawing on its extensive experience from the development and operation of the LISA Pathfinder technology demonstrator. This precursor mission successfully tested the key measurement principles for LISA in space from 2015 to 2017. Together with the German space industry, the AEI also played a leading role in this mission. The entire participation of the AEI in LISA, one of whose personnel is also the scientific lead (Principal Investigator) of the gravitational wave mission, is significantly supported by grants from the German Space Agency at DLR with funds from the Federal Ministry for Economic Affairs and Climate Action (BMWK).
EnVision – a multifaceted mission to Venus
EnVision was selected in June 2021 as the fifth M-class mission in ESA's Cosmic Vision programme and has now also been approved for implementation. In the course of 2024, the project will select an industrial contractor in Europe so that work on finalising the design and building the spacecraft can begin. EnVision is scheduled for launch in 2031 on an Ariane 6 rocket. The mission will study Venus from its inner core to its upper atmosphere and provide important new insights into the planet's evolution, geological activity and climate. EnVision aims to answer many long-standing questions about Venus, in particular how and when Earth's twin became so inhospitable. DLR in Berlin will help to answer these questions, as both the DLR Institute of Planetary Research and the DLR Institute of Optical Sensor Systems are significantly involved in one of the mission's four major instruments.
EnVision – DLR to map mineralogy and search for active volcanoes
Even though the atmosphere of Venus, with its clouds of sulphuric acid that are impenetrable to visible light, does not allow a direct view of the planet's surface, there are still indirect ways of 'imaging' it. This is done on the one hand with radar, which penetrates the clouds as it does for aircraft on Earth, and on the other hand, at certain wavelengths, particularly in the near infrared, by observing through what are referred to as 'atmospheric windows'. However, it is not possible to understand the surface of Venus without also understanding the atmosphere. A spectrometer suite consisting of three sub-instruments is being developed for EnVision to achieve this. It is named VenSpec and has the components VenSpec-U for analysing the upper atmosphere, VenSpec-H for measurements in the near-surface atmosphere and the VenSpec-M, being developed by DLR, for measuring the thermal radiation and spectral properties of the surface.
The entire VenSpec suite is being managed and coordinated by the DLR Institute of Planetary Research. By combining the results from all three channels, deeper insights can be gained into the close 'coupling' between the surface and the atmosphere of Venus. For example, VenSpec-M might discover an active volcanic eruption by detecting the hot lava, while VenSpec-H would simultaneously measure how much water vapour the volcano is releasing into the atmosphere and VenSpec-U would record the distribution of sulphur dioxide from the volcanic eruption in the upper atmosphere. VenSpec-M will not only be able to measure the thermal signature of a hot, active volcano; the instrument will also map the mineralogical composition of the surface globally for the first time. VenSpec-M is being developed and built under the leadership of the DLR Institute of Optical Sensor Systems, while the DLR Institute of Planetary Research is responsible for the scientific management of the experiment on EnVision. Both institutes are located at the DLR site in Berlin-Adlershof. In addition to DLR, other scientific institutes in Germany are involved in the EnVision mission.
