Germany's largest ever stony meteorite found in Blaubeuren
July 15, 2020
Germany's largest ever stony meteorite found in Blaubeuren

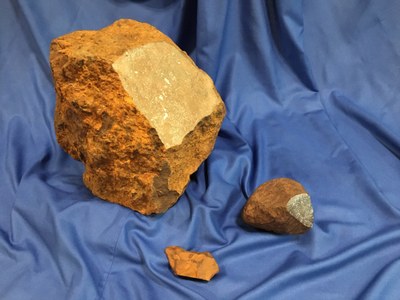

The 30-kilogram ‘Blaubeuren’ meteorite
It is a scientific sensation. In 1989, while digging a cable trench on his property in Blaubeuren, near Ulm, a resident came across a stone that seemed unusually heavy and had magnetic properties. The angular chunk of rock then lay in the garden for decades. After 31 years, the finder wanted to know for sure whether it could be a meteorite and he reported his find to the German Aerospace Center (DLR) in January 2020. Only a few days later, it was clear that the find was indeed a stony meteorite with a mass of over 30 kilograms, the largest ever found in Germany. ‘Blaubeuren’, the official name given to the find by the Meteoritical Society, probably fell to Earth several hundred years ago, because its exterior shows strong signs of weathering.

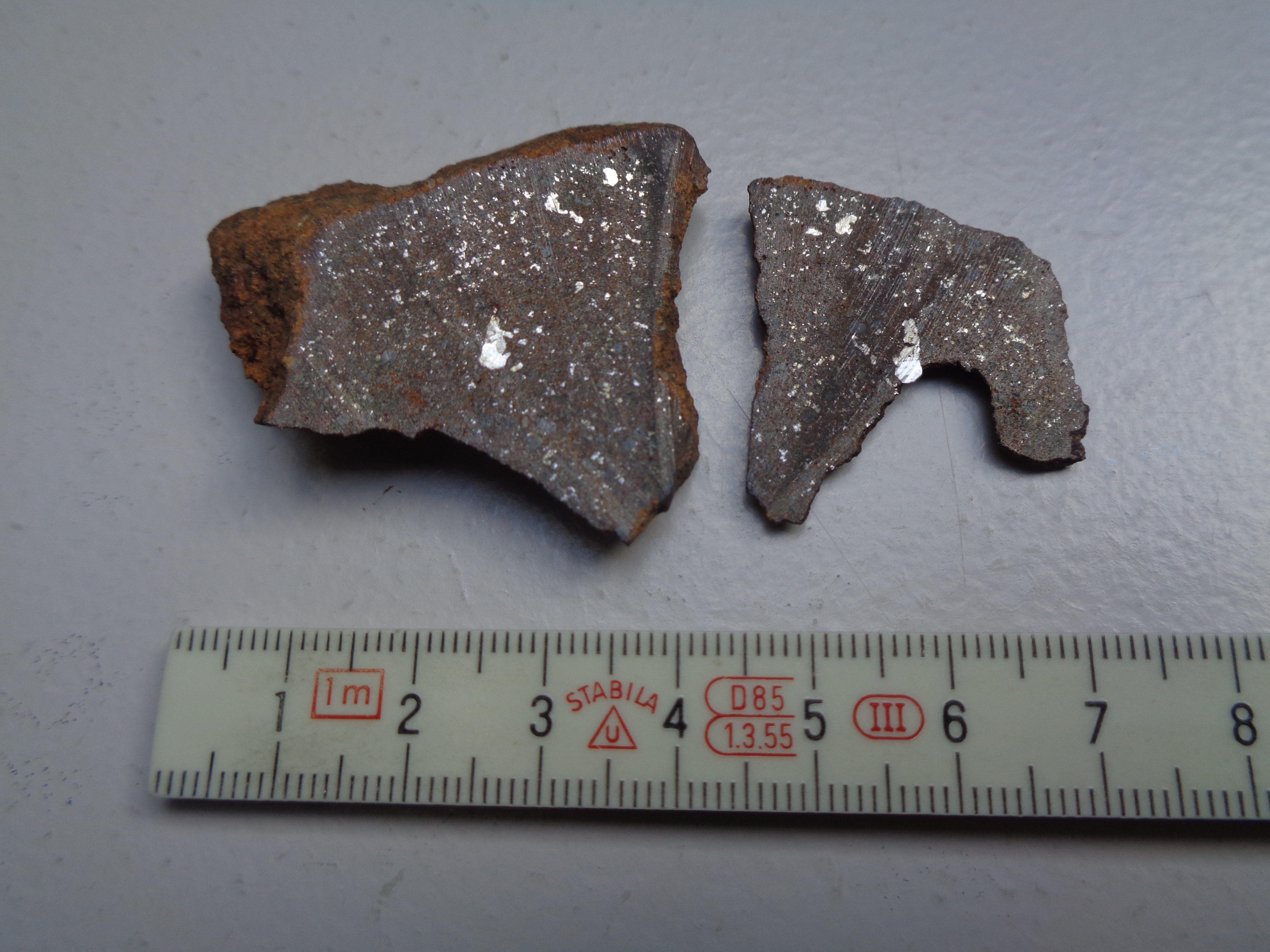

The first clear indication that ‘Blaubeuren’ is a meteorite

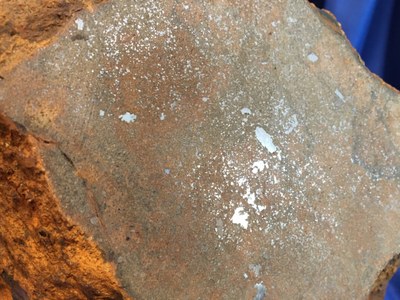

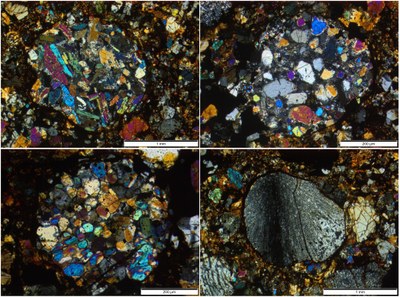

After sending images, the finder sent a fragment weighing 23.4 grams, cut off from the main ‘Blaubeuren’ mass, to the DLR meteorite expert Dieter Heinlein. After a visual inspection, the expert recognised the presence of iron ore, but then he took a diamond saw and cut the small piece open. Heinlein then saw a matrix of millimetre-sized chondrules, spheres that are typical for stony meteorites. These small chondrules were created during the formation of the Solar System 4.5 billion years ago and represent the basic building blocks of all the planets. He also discovered characteristic metal inclusions. Thus, it was confirmed that this fragment was indeed part of a meteorite.

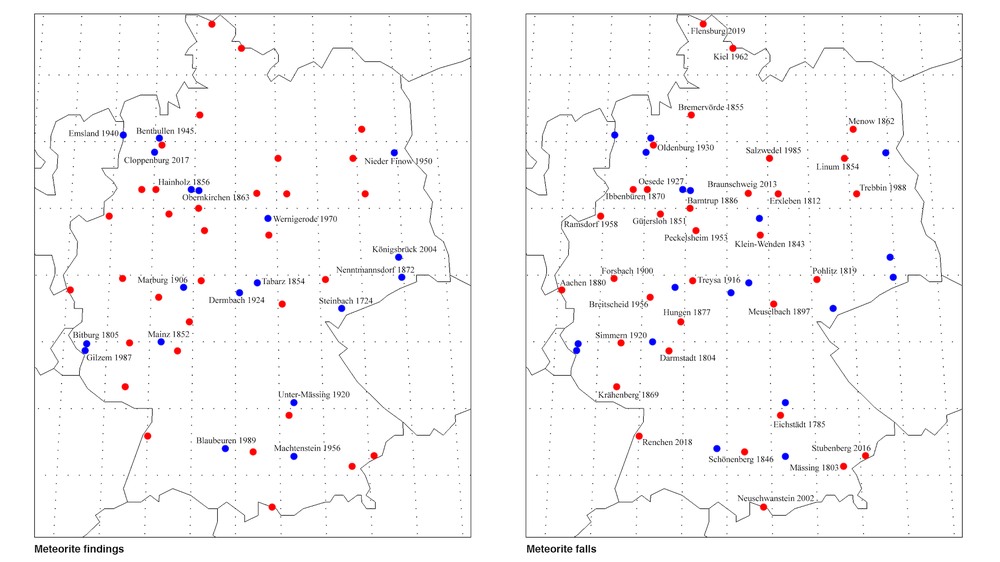

Observed meteorite falls and chance meteorite finds in Germany

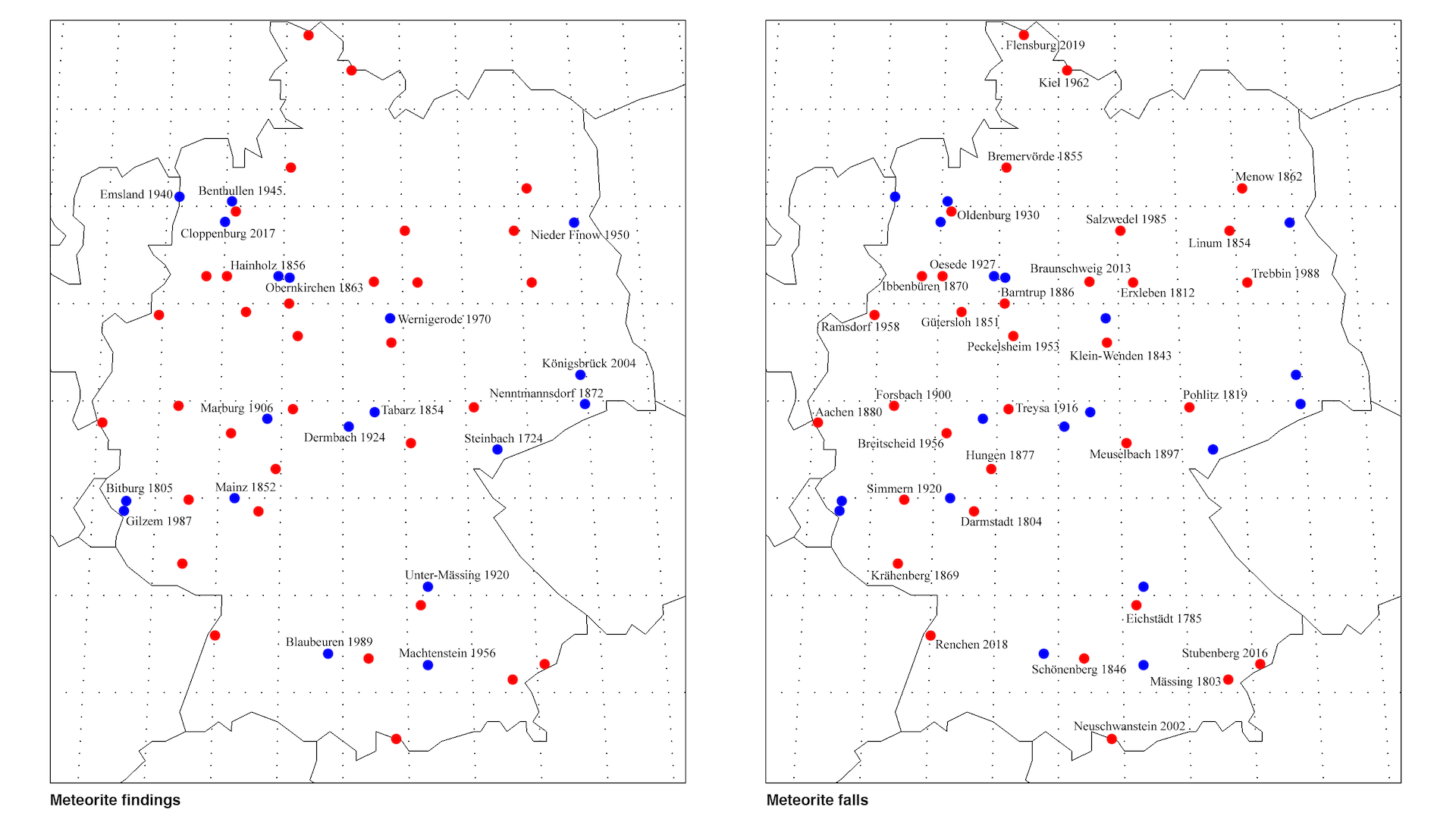

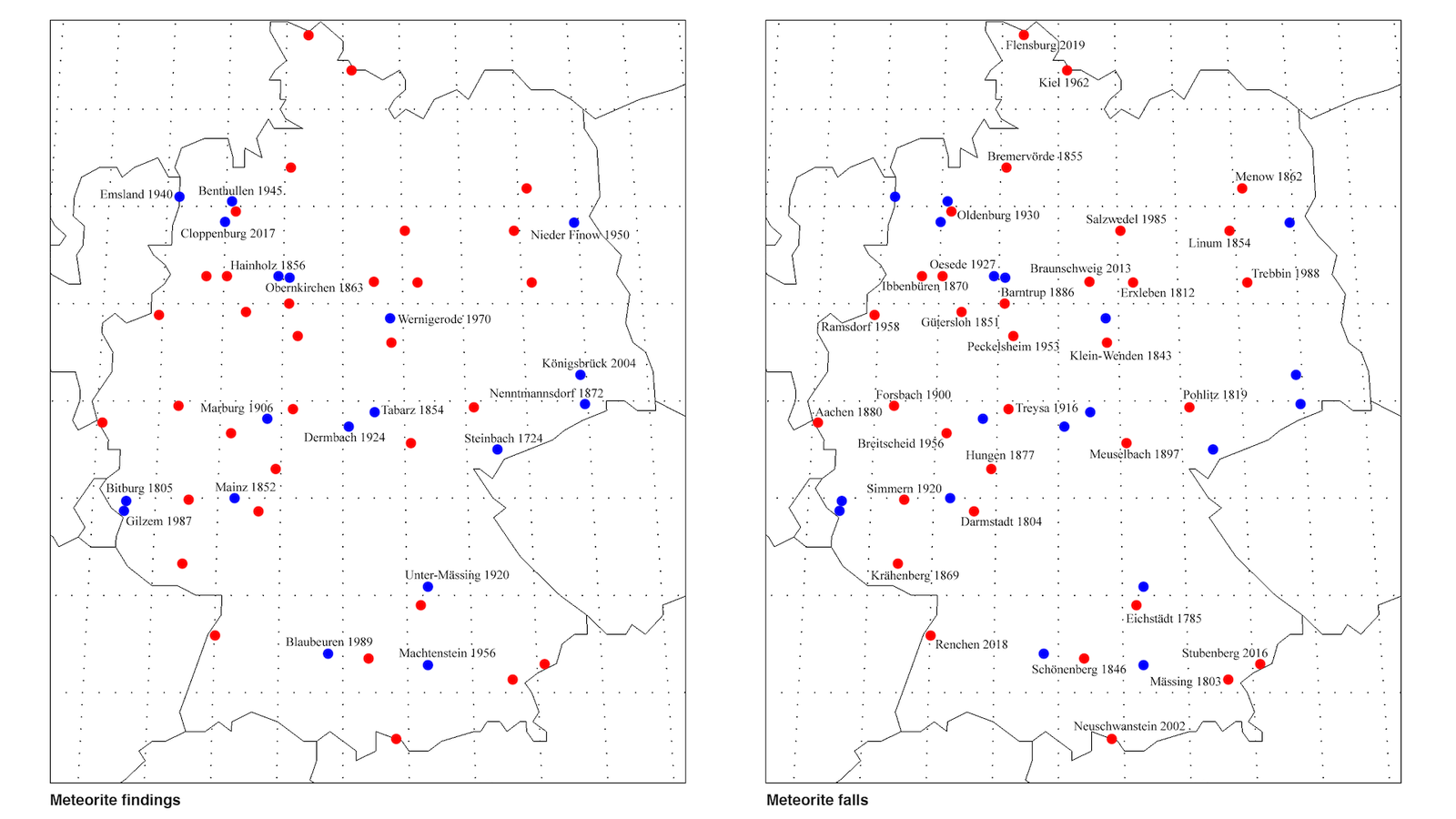

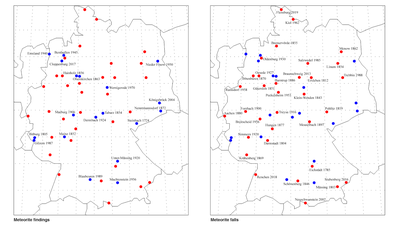

The map on the left shows the location, official name, and year of discovery of 19 meteorites which were found by chance and recognised as meteorites, but whose fall was not observed. Among them is the ‘Blaubeuren’ meteorite, which fell to Earth long before its discovery in 1989, possibly some centuries ago. It landed in the valley of the river Blau near Blaubeuren, a picturesque medieval town 14 kilometres west of Ulm. The map on the right shows the name and year of fall of 33 meteorites in Germany the fall of which was directly observed. The ‘Blaubeuren’ meteorite is not included, but the map does include, among others, the meteorite ‘Neuschwanstein’, the fall of which was detected in 2002 by DLR’s meteorological observation network and whose fall area could be reconstructed geometrically. After the fall, three fragments of ‘Neuschwanstein’ were found.

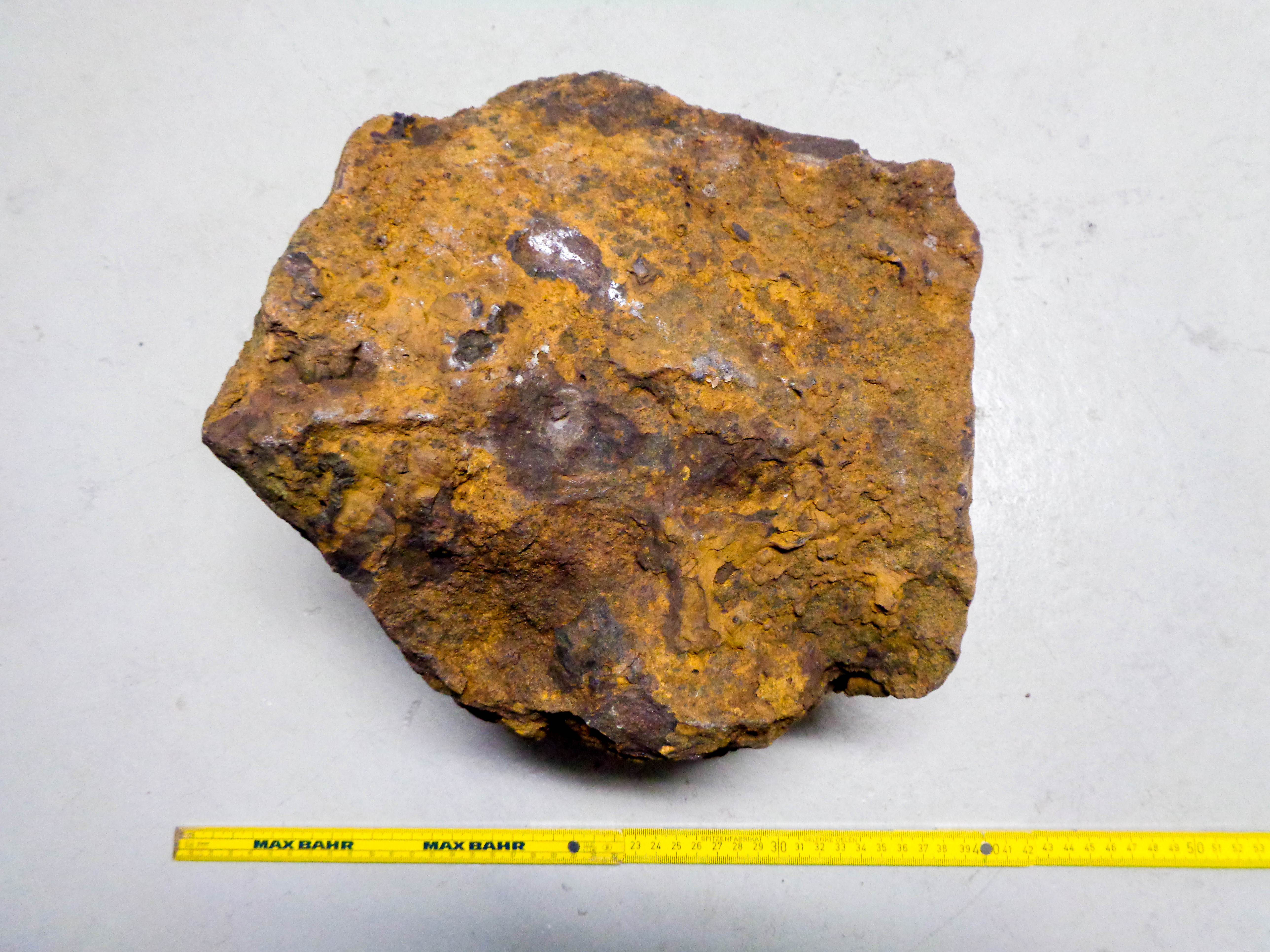

A chondrite weighing 30 kilograms was discovered by chance.
A homeowner found the visitor from space in 1989 while digging a cable trench.
The meteorite is thought to have fallen to Earth hundreds of years ago.
Focus: Planetary research, meteorites, Solar System exploration
Even in science, chance sometimes produces more thrilling discoveries that the most ambitious plans. In 1989, a homeowner was digging a cable trench on his property in Blaubeuren, in the German region of Swabia, when his spade hit a rock measuring 28 by 25 by 20 centimetres. Upon lifting it half a metre to the surface, he found that it was remarkably heavy. He held a magnet to the rock and confirmed that it contained iron. The angular boulder was then left lying in the garden for decades. Only 31 years later did it occur to the finder that it might be a visitor from space. In January 2020, he reported his find to the Institute of Planetary Research at the German Aerospace Centre (Deutsches Zentrum für Luft- und Raumfahrt; DLR). Then, after the first scientific analyses, came the sensational discovery that the object is indeed a stony meteorite. In addition, with a mass of over 30 kilograms, it is the largest ever found in Germany. On 7 July 2020, the Meteoritical Society, the international organisation of meteorite researchers, which documents all meteorite finds and falls worldwide, confirmed in its bulletin that this find had been recognised as a meteorite. It has been officially named 'Blaubeuren' after the place where it was discovered, the small medieval town of Blaubeuren, 17 kilometres west of Ulm.
"This is a standard type H4-5 chondrite," says Dieter Heinlein, a meteorite expert at the DLR Institute of Planetary Research in Augsburg and coordinator of DLR's research into and studies of 'Blaubeuren'. "The find has a mass of 30.26 kilograms, making it the largest stony meteorite ever to be found in Germany." Prior to 'Blaubeuren', the 'Benthullen' meteorite, which was discovered near Oldenburg, was the record-holder, with a mass of 17.25 kilograms. The density of 'Blaubeuren' has been determined to be 3.34 grams per cubic centimetre; this is particularly high due to the meteorite’s significant iron and nickel content.
A sensational find at the end of a series of coincidences
The history of 'Blaubeuren' is quite extraordinary. At first the rock, which was a mere obstacle to the digging of the cable trench and had to be cleared out of the way, was simply overlooked. Even an expert would hardly have guessed that the heavily weathered boulder was actually a meteorite. After all, potential meteorites generally feature a characteristic dark fusion crust, caused by heating during their high-speed descent through Earth's atmosphere.
The meteorite languished in the landowner's garden until 2015 and became increasingly weathered over time. At that point, he almost got rid of it altogether, saying: "The boulder was actually on the trailer, ready to be taken away." Fortunately, he had second thoughts and transferred the rock to his cellar, where it was kept safe and dry in a cupboard. In January 2020, he decided to find out about the composition and background of this strange rock once and for all, and contacted DLR. Heike Rauer, Director of the DLR Institute of Planetary Research, and Jürgen Oberst, who oversees the European Fireball Network at DLR, put the finder in contact with Dieter Heinlein, DLR's meteorite expert in Augsburg. The Institute maintains a website with information and a checklist for identifying potential meteorites, plus an address for reporting meteorite sightings.
The cut fragment that revealed the secret of 'Blaubeuren'
After a discussion on the phone and the sending of numerous images, the finder sent a fragment weighing 23.4 grams to Heinlein. From a visual inspection, the expert could immediately recognise the presence of iron ore, but when he reached for his diamond saw and cut the small piece open, he was utterly amazed. Heinlein saw a matrix of millimetre-sized chondrules that is typical of stony meteorites. These small spheres were created during the formation of the Solar System 4.5 billion years ago and represent the original building blocks of all the planets. He also discovered the characteristic metal inclusions of a meteorite. "I was immediately pretty certain that this was a fragment from a meteorite," says the DLR expert.
On 9 February 2020, the finder entrusted the main part of the meteorite to DLR for further investigations, including a precise determination of the density of the material. A while later, another fragment weighing 410 grams was found in the same garden. This additional find was also subjected to intensive scientific investigation. In consultation with the finder, the main body, which weighed over 30 kilograms and was heavily weathered on the outside, was cut into in order to examine the chondritic structure of the meteorite and its inclusions in greater detail. Even Heinlein, who has a large collection of specialist tools, was somewhat overwhelmed: "Of course, I had never had such a large piece of rock in my laboratory." He found a specialist company to help – the workshop of the stonemason and sculptor Peter Fraefel in Mindelheim, Allgäu. On 30 May 2020, after intensive planning and preliminary discussions, a 576-gram corner of the meteorite was removed using a diamond saw.

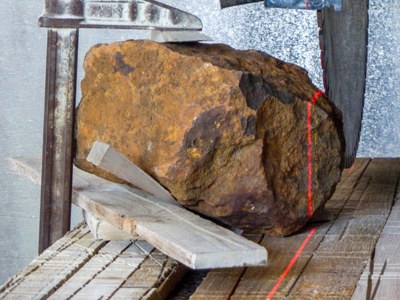

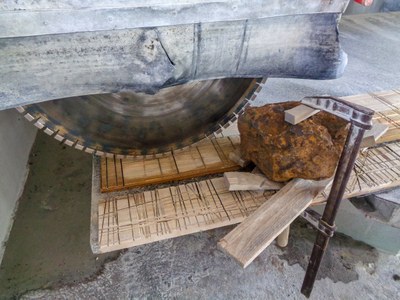

After intensive planning and discussions, stonemason and sculptor Peter Fraefel sawed off a corner of the meteorite weighing 576 grams.
Sawing in the stonemason’s workshop
Your consent to the storage of data ('cookies') is required for the playback of this video on Quickchannel.com. You can view and change your current data storage settings at any time under privacy.
Sawing in the stonemason’s workshop
After intensive planning and discussions, stonemason and sculptor Peter Fraefel sawed off a corner of the meteorite weighing 576 grams.
Credit:
DLR/Gabriele Heinlein
A journey through three laboratories – 'Blaubeuren' analysed
Chemical and mineralogical analyses were then carried out in three different, specialist laboratories – albeit very discreetly, as Heinlein and DLR suspected that the find might cause quite some excitement. At the Museum of Natural History in Bern, Beda Hofmann used an X-ray fluorescence spectrometer to determine the meteorite’s concentrations of barium and strontium isotopes. The results revealed that the rock had become weathered after falling onto the Swabian Jura. This confirmed that 'Blaubeuren' is definitely Swabian.
In a laboratory at Radiation Protection, Analytics & Disposal (Strahlenschutz, Analytik & Entsorgung Rossendorf e. V.; VKTA), Detlev Degering conducted measurements of the radioisotope content in the main meteorite mass and the subsequent find, and also analysed soil samples from the garden where they were discovered. This enabled the proportions of the cosmogenic, terrestrial and anthropogenic (i.e. human-caused) radioisotope components to be determined. The aim is to find out roughly when the meteorite fell to Earth. Judging by its weathering, this could have happened several centuries ago. Investigations in this area are still ongoing.
'Blaubeuren' is the result of a cosmic collision
Lastly, thin sections were prepared by the Institute of Planetology at the University of Münster (Westfälischen Wilhelms-Universität Münster; WWU) in order to determine the chemical, mineralogical and petrological composition of the object. "'Blaubeuren' is obviously a breccia, in other words a rock that has been created by the agglomeration of a number of fragments," explains Addi Bischoff from WMU. “In the past, the Blaubeuren meteorite experienced at least one violent collision. We often see this with H4 and H5 chondrites." Under the surface lies the iron and magnesium silicate olivine, which makes up almost three quarters of the mineralogical constituents of the meteorite. Following these investigations, 'Blaubeuren' was submitted to the Meteoritical Society's Nomenclature Committee by Kerstin Klemm of WWU on 16 June 2020. It was recognised as a meteorite just three weeks later.
Meteorites play a hugely important role in the study of the early development of the Solar System. They arrive on Earth of their own volition and 'free of charge'. Most of them originate in the asteroid belt between Mars and Jupiter before their orbit is disrupted, putting them on a collision course with Earth. They enter the atmosphere at high speed so, even if they were originally large masses of rock or iron, often only a small remnant actually hits Earth as a meteorite. For now, Blaubeuren will remain with its finder, but ultimately the owner wishes Germany's largest stony meteorite to be on permanent display in a museum, so that the public will also be able to marvel at this 'Swabian that fell from the sky'.
