Instruments and technical components of InSight
Instruments and technical components of InSight

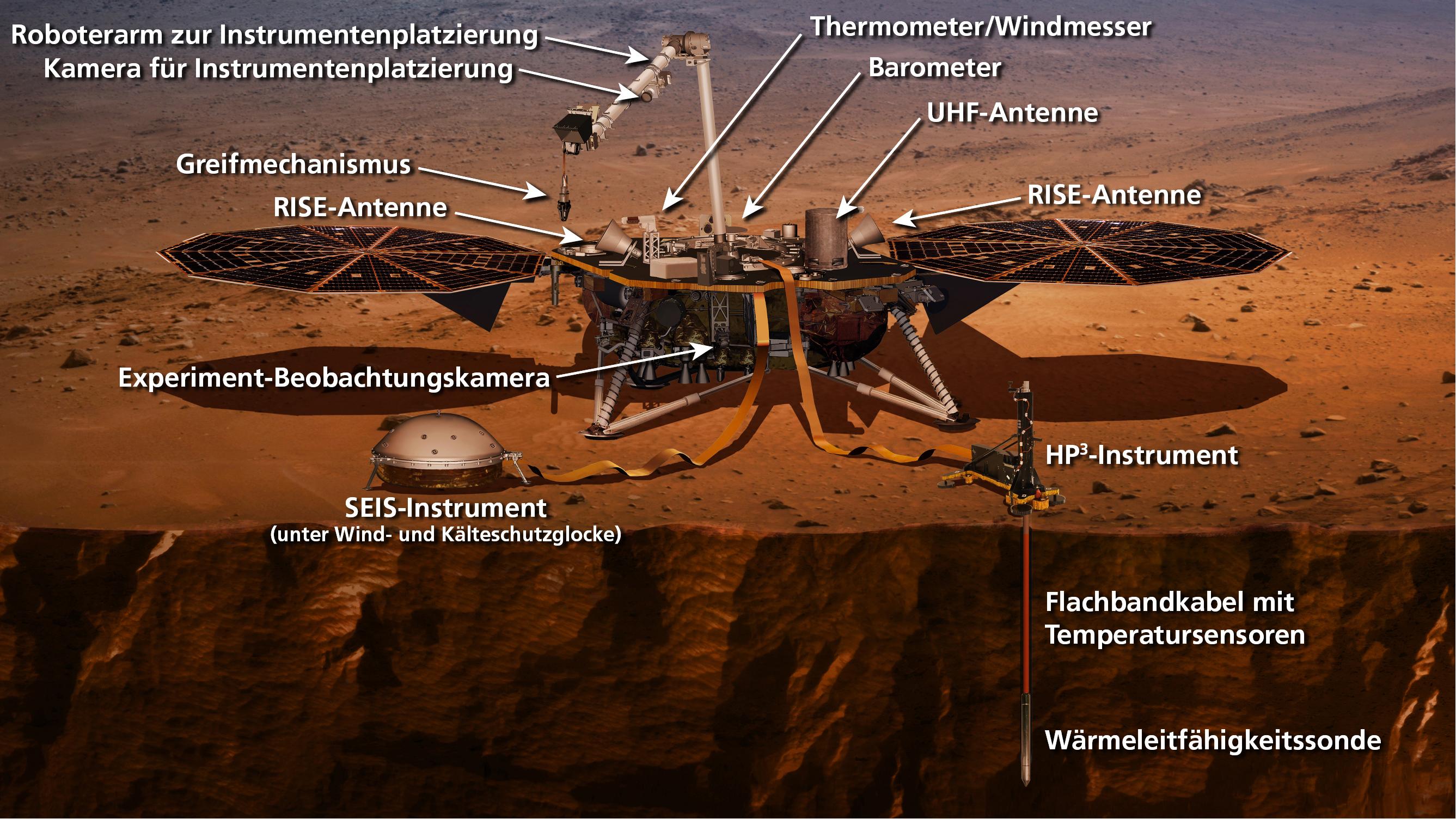

InSight’s structural design is similar to that of NASA’s Phoenix lander from 2008. The main component is a platform two metres in diameter, on which most of the system components – the experiments in their ‘transport mode’, the antennas, the on-board computer, the thrusters, the propellant tanks and three telescopic legs are attached. A robotic arm will be deployed after landing and lift the experiments HP³ and SEIS from the platform onto the Martian surface. At the side of the platform are two solar panels, which produce a maximum of 700 watts, depending on the distance between Mars and the Sun. The RISE experiment is conducted from the platform itself.
