PicColor Deformation Measurement

PicColor deformation measurement

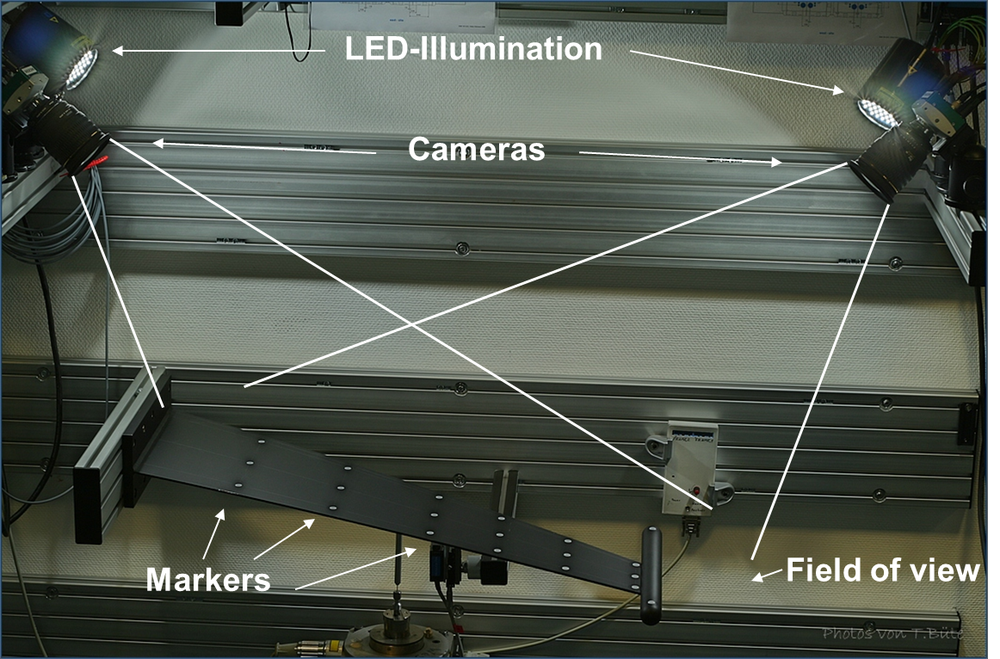

The motion and deformation state of a wind tunnel model is measured using an optical, marker-based photogrammetry system time-synchronised with the pressure and force measurements. This takes place in real time, so that the data acquired can also be used to monitor structural loads in the wind tunnel.
