Universal Testing Machines (Zwick©)

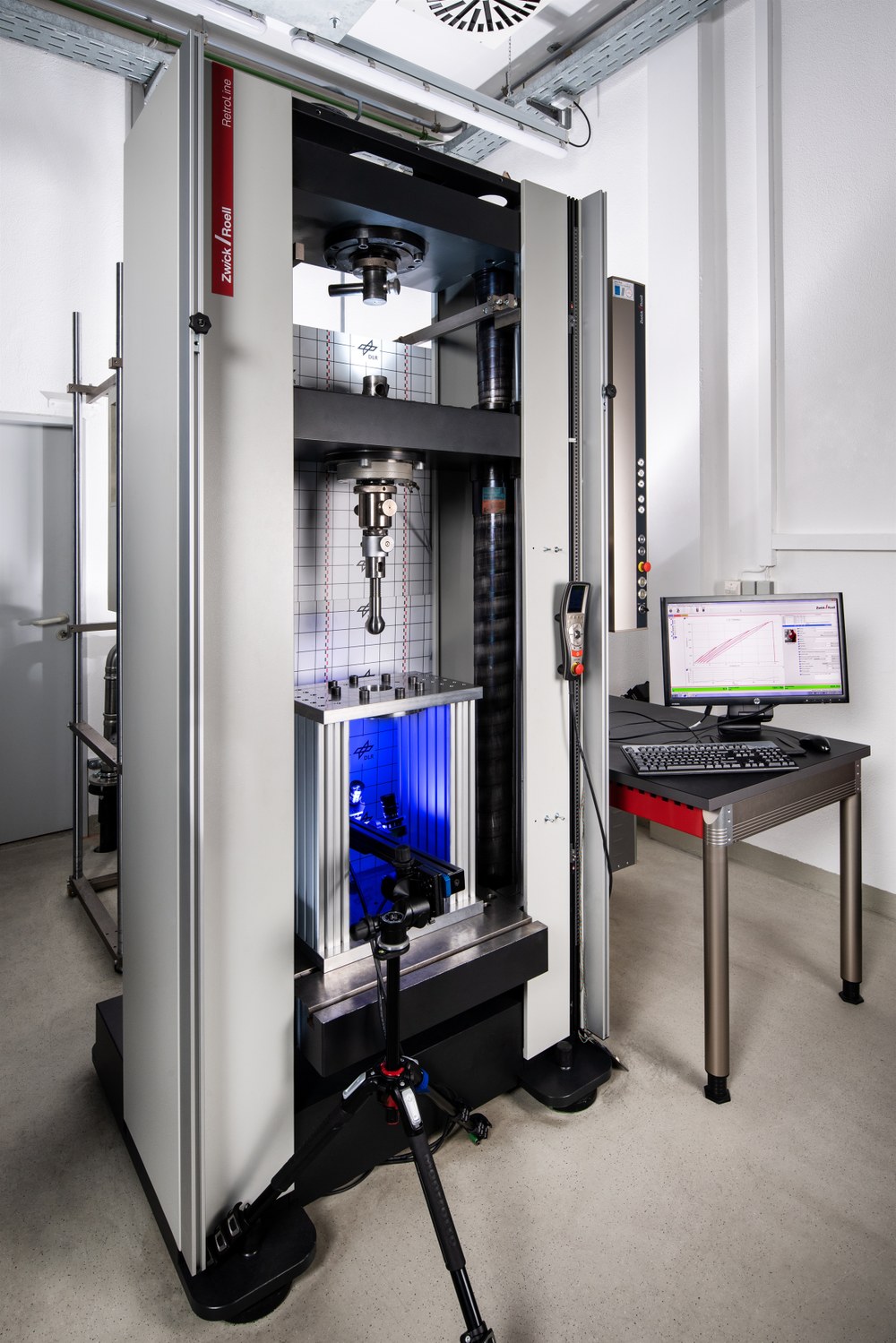

Universal testing machine
Universal testing machine with a customized punch test device
Image: 1/5, Credit:

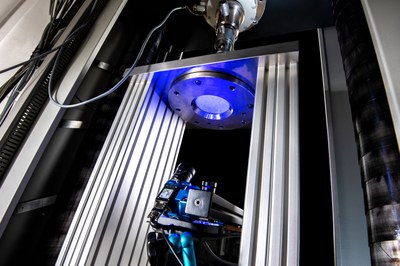

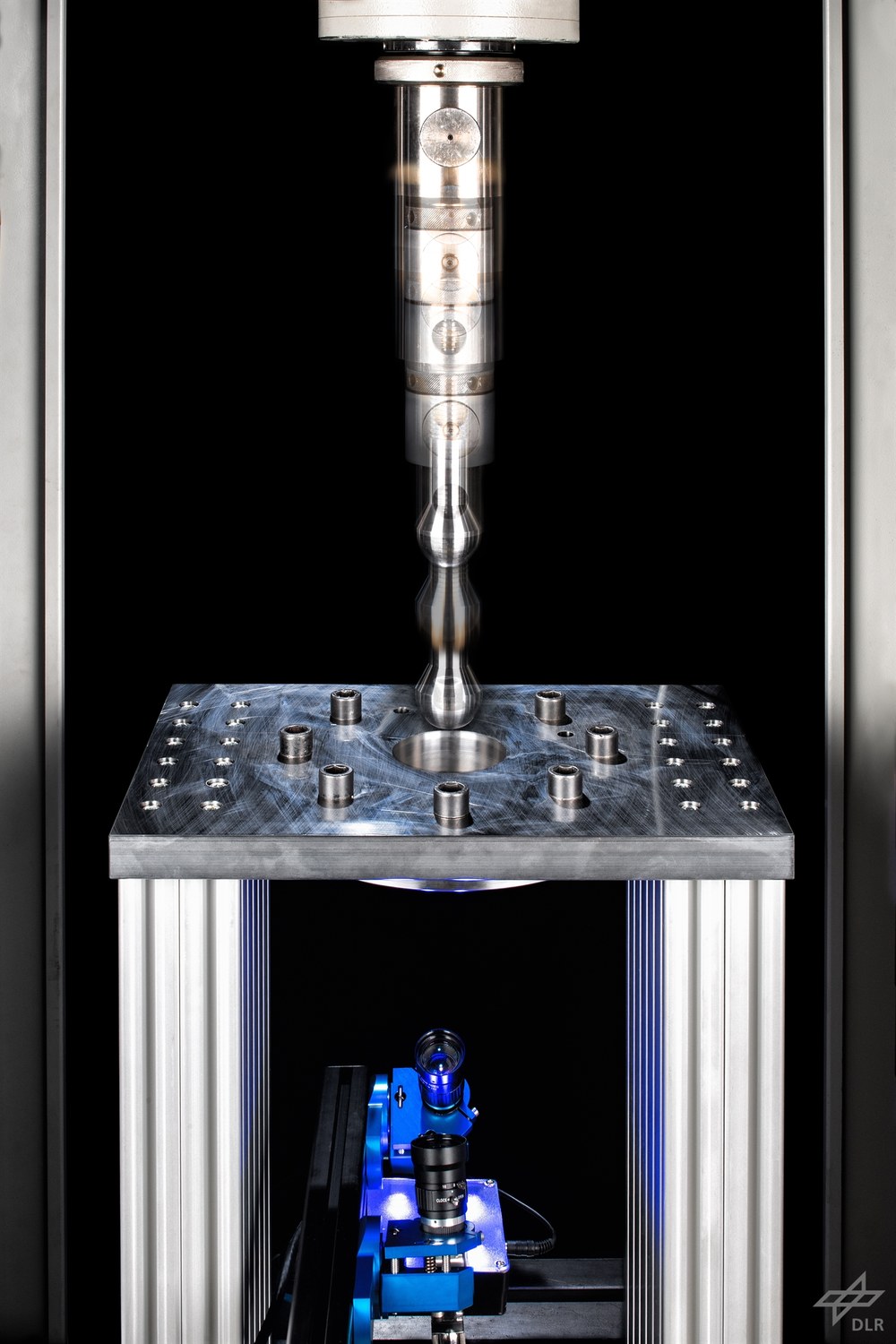

Punch Test
For testing plastics at different velocities. The test is characterised by its multi-axis tension state.
Image: 2/5, Credit:
Shear test
Shear test according to ASTM 7078
Image: 5/5, Credit:

The institute has a mechanical precision measuring laboratory consisting of four electromechanical universal testing machines from Zwick©. Using a wide range of sensors, properties of various materials (metal, composite, hybrid material) can be determined according to international standards or individual tests can be carried out on components and structures.

Technical data Universal Testing Machines

Max. load

500 kN

Max. length

2 m

Max. velocity

Up to 600 mm/min.

Temperature range

- 100°C bis 350 °C

Climate

Testing conditions 22°C/50% r.F. Samples can be conditioned in the environmental chamber

Sensors

Video extensometer, strain gauge, digital image correlation, additional load cells, triangulation lasers
