Drop Tower
Video: Drop Tower
Image: 1/5, Credit:

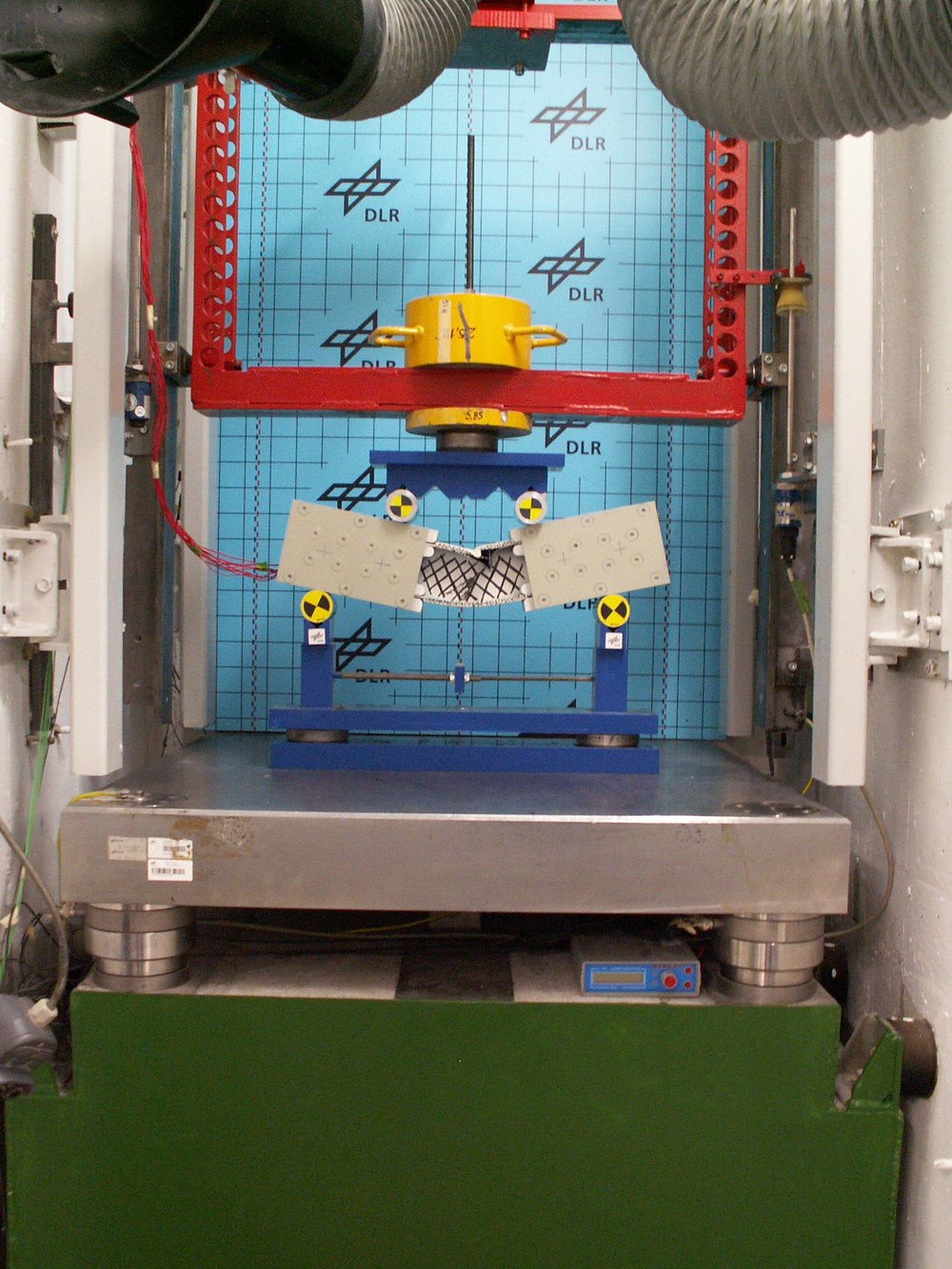

Four-point bending test
Instrumented with various strain gauges, load cells and prepared for optical deformation analysis.
Image: 2/5, Credit:

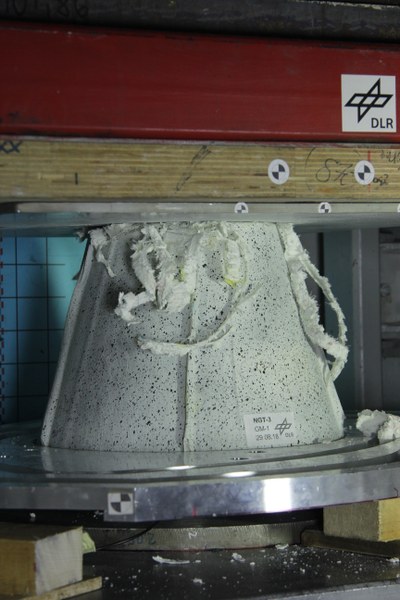

Video: High-speed recording of the test of a crash absorber
Image: 5/5, Credit:
Max. drop mass | 800 kg |
Max. velocity | 14 m/s |
Max. energy | 60 kJ |
Specimen geometry | 920 x 920 x 980 mm |
Impactor geometry | Modular adaptable to different drop sleds |
Sensors | Load cells, triangulation lasers for displacement measurement, acceleration sensors, strain sensors, high-speed cameras |
