Thermoplast Cell (TPC)

Robot on a linear axis

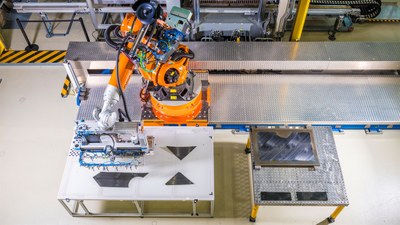

Top view of the integrated working cell TPZ with a robot on a linear axis parallel to the hot press in the research facility of the Center for Lightweight Production Technology
Image: 1/7, Credit:

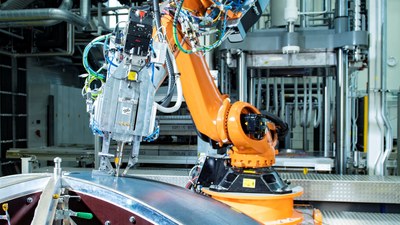

Placement of a fuselage skin segment

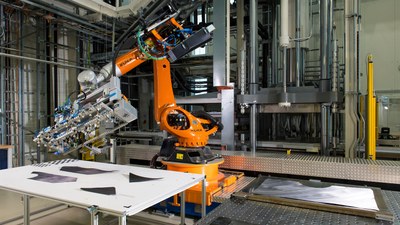

View of the thermoplastic cell during the fully automated patch-preforming process for the placement of a fuselage skin segment
Image: 2/7, Credit:

Thermoplast Cell (TPC)
Image: 7/7, Credit:

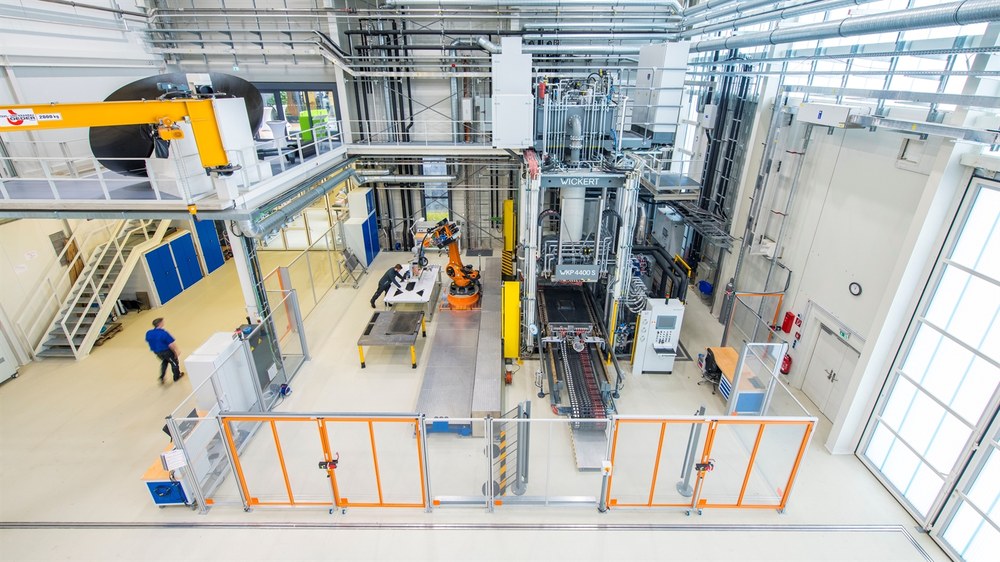

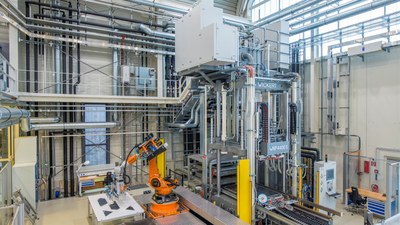

Our institute in Augsburg features an integrated robotic work cell - the so-called TPC - for the investigation of fibre-reinforced thermoplastic composite production technologies.

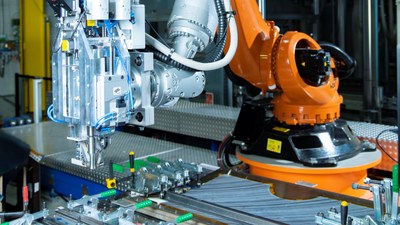

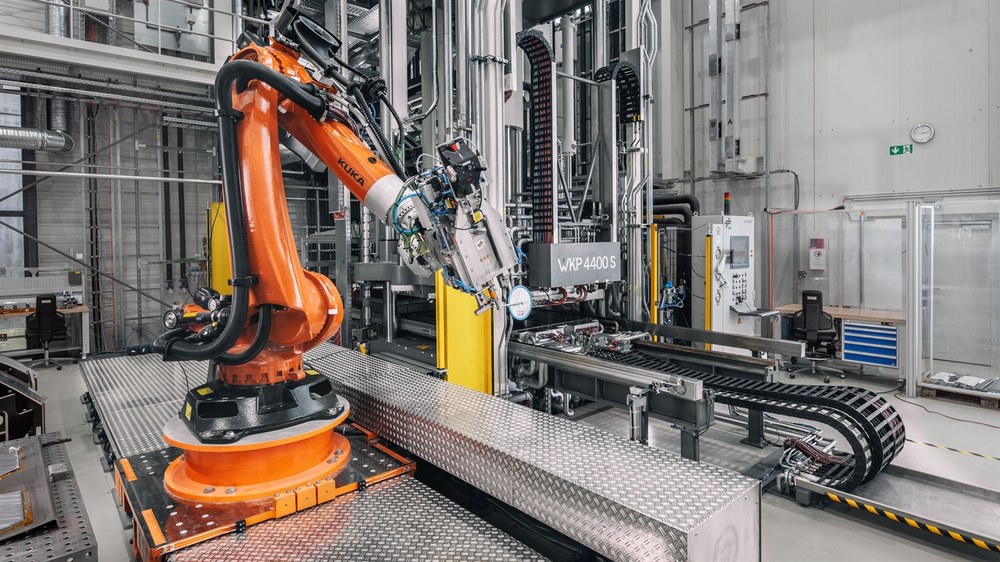

A diverse range of processes - from preforming to joining - can be investigated along the process chain using a temperature-resistant robot on a 7 m long linear axis. High-rate processes in combination with a hot press (4,400 kN press force / heating temperature up to 450°C) can also be demonstrated here.
